The Voith TurboCool coupling optimizes the operation of gas compressor stations with engine driven cooling fans. This coupling reliably regulates the speed of the fans to maintain optimum cooling performance. The cooling system does not freeze up and does not overheat. This increases availability to the compressor station. The cooling system requires less power. Increase of gas production is possible with saved power. Lower cooling capacity means lower CO2 emissions and lower fan noise. Environmental pollution is reduced.
Voith Turbo GmbH & Co. KG
74564 Crailsheim, Germany
Sales, Technical Consulting, Quotations
Tel. +49 7951 32-409
Fax +49 7951 32-213
Service, Spare parts, Repair
Tel. +49 7951 32-1020
Fax +49 7951 32-554
24/7 Technical Emergency Helpline
+49 7951 32-1616
Benefits and uses
- Prevents the compressor cooler from freezing or overheating
- Bi-annual adjustment of the fan blades not required
- Higher gas production possible
- Overload protection of the drive from sudden stops
- Reduces load on engine, thereby reducing CO emissions
- Reduces noise emissions due to lower overall fan speed
Typical fields of use
- Wellhead stations with combustion engine
- Booster stations with combustion engine
- Gathering stations with combustion engine
Hydrodynamic couplings transmit the initiated mechanical power to the driven machine via a flow of fluid. This occurs by means of two bladed wheels positioned face to face. The primary wheel (red) is connected with the motor and acts like a rotary pump, the secondary wheel (blue) is connected to the driven machine and acts like a turbine. Power transmission is proportional to the fill level in the working circuit. As a result of the mechanical separation of the drive and driven sides, the hydrodynamic couplings transfer the power wear-free and dampen the torsional vibration and torque shocks in the drive chain at the same time.

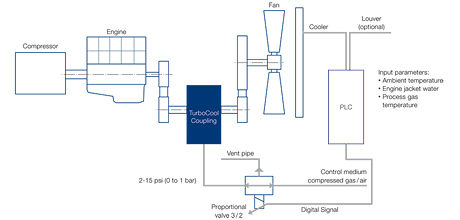

With fill-controlled couplings, a control device continuously changes the transmission behavior. This is carried out by changing the filling level and is made possible by controlling the flow of the operating fluid supply and draining using valves.
TurboCool fill-controlled couplings have an external fluid circuit that is also used for cooling. These couplings function primarily as a soft start/stop and speed control mechanism for the cooling fan. This increases the productivity and reliability of your system.
When starting, fill-controlled couplings are completely empty thus enabling a load-free engine run-up. This relieves and protects the engine and mechanical drive components.
The TurboCool couplings have an innovative paddle wheel profile, the so-called XL profile. Voith engineers developed this profile using the latest CFD simulation. Drawing on many years of experience and know-how, they managed to get more operating media into the working circuit of the coupling. This leads to higher power transmission with the same installation space.
Voith doesn't just supply couplings, we are also your engineering partner for customer-specific drive solutions:
- Designing of complete drive packages
- Customizing the coupling for the optimal use of your system.
- Analysis and optimization of the operating performance of drives in existing systems (retrofit)
- Individual consultation and preparation of an optimized control logic
With our service provision, we support you anywhere in the world throughout the entire service life of your system.
How you benefit: you increase the efficiency, safety and availability of your system.
- Original spare parts
- Commissioning and follow-up-service
- Modernization, retrofits
- Service agreements
We are at your side at all times: 24 hours a day, 7 days a week. Thanks to our worldwide service network, we are always close by.
Tel. +49 7951 -32 0
Ask for the service for soft-start couplings.
