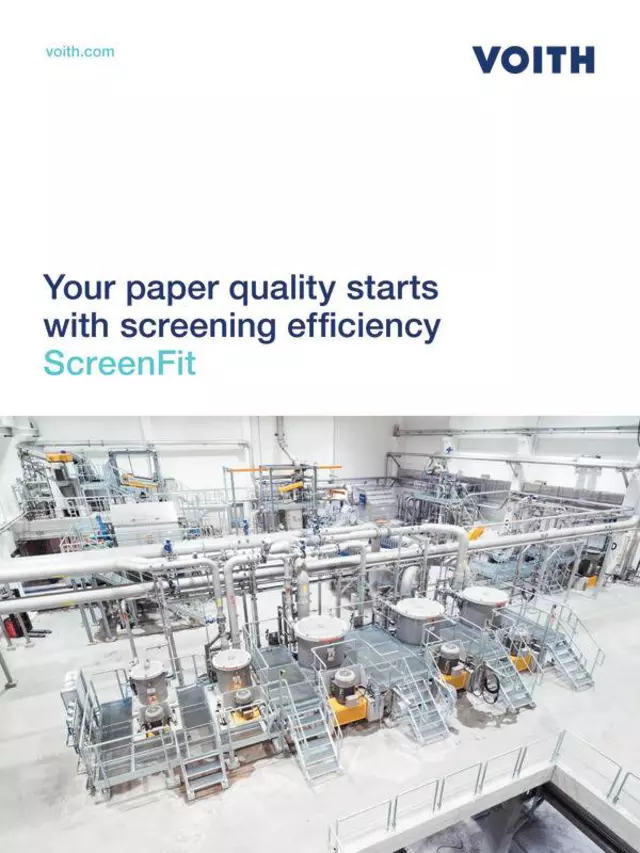

Your paper quality starts with screening efficiency

    screening rotor by Voith
    Screening requirements have changed tremendously over the last years. Inferior raw material properties for pulp and paper as well as increasing papermaking manufacturing costs, like energy, have led to higher demands for energy-efficient products and to further process optimizations. Therefore, all manufacturers had to increase their effectiveness in order to compete and be sustainable in the globalized pulp and paper industry environment.
    Download the family brochure

    How can we help you? Contact our experts!

    Find Your personal contact

    Slot screen baskets

      Voith C-bar
      Proven C-bar technology

      In recent benchmark studies, C-bar proved to be the most reliable slot screen basket in terms of high efficiency and throughput rate with the lowest specific energy consumption and minimum fiber loss. This success is based on the unique C-bar profile, paired with overlapping bar design arrangement.
      The C-bar screening cylinder is applicable for all kinds of stock in the most varied stock preparation and approach flow processes. One major advantage: The C-bar basket can also be used for high stock consistencies and trash loads.







      Our portfolio of slot screen baskets

      C-bar Screening Cylinder

      C-bar Screening Cylinder

      The high-performance screen basket for efficient screening
      C-bar screen basket by Voith
      C-bar screen baskets offer precise, reliable technology for centrifugal and centripetal pressure screens for Voith and non-Voith machines. All kinds of stock, in the most varied stock preparation, broke screening and pulp screening applications, can be reliably screened, even with high stock consistencies and trash loads.
      C-bar screen baskets are unique. Their overlapping bar design protects the slots from high wear and keeps the slot widths constant over their whole lifetime.

      Your benefits with C-bar Screening Cylinders

      • High throughput because of large open screening surface
      • Improvement in quality because of high separation rates of dirt and impurities
      • Low fiber loss because of precise processing
      • Energy-efficient and long-lasting mode of operation
      • NDura quality screen basket material guarantees high basket strength
      • Wear protection through Voith hard chrome-plating technology
      • Quick and flexible delivery times with constant and reliable quality

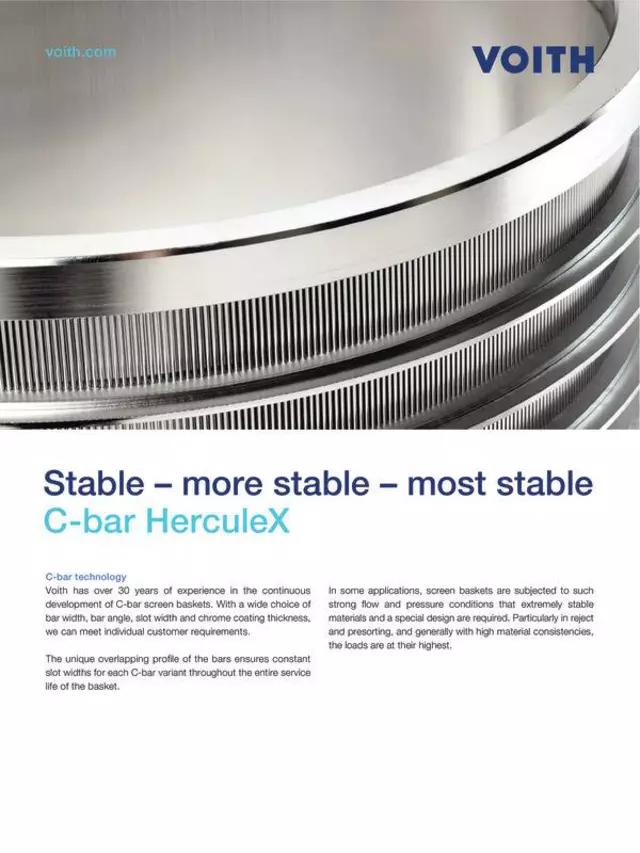

      C-bar HerculeX

      C-bar HerculeX

      Strong. Solid. Stable.

      To withstand the enormous flow and pressure conditions in screening applications, Voith has developed the strongest screen basket on the market – C-bar HerculeX.

      Thanks to the new and innovative hybrid technology, the screen basket copes with maximum loads. In combination with C-bar technology, which has been used successfully for over 25 years, it is the ideal screen basket for applications with demanding requirements.

      C-bar HerculeX by Voith


      Maximum throughput is achieved by means of the clamping technology for the large open screening surfaces and the C-bar bar geometries. The special manufacturing process and wear-resistant material of the screen basket also reduce investment cost. The new screen basket can be customized to meet individual screening requirements and production conditions. Bar width and angle, slot width and chrome layer thickness can all be selected individually.



      In combination with the proven Voith EclipseRotor, an optimal and reliable screening process will be achieved. The C-bar HerculeX screen basket can be used in all Voith and non-Voith sorters.

      Your benefits with C-bar HerculeX

      • Maximum stability in applications with high stock consistencies and rotor speeds such as broke screening and pre-screening
      • Efficient screening due to individual adjustment of slot widths and geometries combined with proven C-bar technology
      • Low investment costs compared to welded or bonded screen baskets
      • Cost savings for screen maintenance
      • Maximum throughput due to large open screen area
      • Long service life thanks to wear-resistant material

      C-bar HerculeX D

      C-bar HerculeX D

      Strong version with breaker bars
      C-bar HerculeX D
      No matter if a screening system works centripetally or centrifugally, if you need extra strength in your screen or if your trash load is extremely high, Voith will provide a perfect manufactured C-bar basket to fit the application. For extremly high trash loads, C-bar will be equipped with breaker bars to prevent accumulation between rotor and basket.

      Your benefits with C-bar HerculeX D

      • Suitable for extremly high trash loads
      • Breaker bars prevent accumulation between rotor and basket
      • Overlapping profiles avoid wear in the slot
      • For all grades and all process steps
      • Highest open area due to overlapping design

      C-bar C

      C-bar C

      Higher capacity with lower energy consumption
      C-bar C
      Thanks to fine slots, the C-bar C improves the screening efficiency in comparison to conventional screen baskets. It can be used in all centripetal screening machines. The C-bar technology and a large open screen surface result in a high rate of sticky removal and maximum throughput. With increased capacity, lower energy consumption is a resulting benefit. The C-bar C can be used in all centripetal screening machines and is suitable for use in both stock preparation and approach flow systems. In addition, it offers a compatible profile for every application. In the High-End Finishing series, smoothed joints and an electro-polished surface guarantee the highest finishing quality.

      Your benefits with C-bar C

      • Large, open screening surface
      • High sticky removal efficiency
      • Less energy consumption
      • High stability with welded profile bars
      • Suitable for all centripetal screening machines

      Hole screen baskets

        The Voith NDura hole screen basket offers precise and reliable technology for centrifugal pressure screens. They are ideal for use in stock preparation, as well as broke, pulp and approach flow screening.

        The optimization of the pitch design leads to an achievement of the highest open screen areas and, as a result, to a high throughput. The high separation rates of dirt and impurities contribute to quality improvements in the end products. Constant advances in our manufacturing techniques yield the highest precision in different hole designs and roundness of the screen basket. Each screen basket is equipped with the Voith hard chrome-plating technology and possesses a high wear protection.

        The highly sophisticated products are suitable for Voith screens and for all current machines and associated rotor combinations of other manufacturers.

        Screening rotors

          MultiFoil rotor by Voith

          Higher demands in raw material screening require increased screening efficiency and pose distinct challenges for facility operators. Voith screening rotors are the ideal answer, combining maximum screening quality and throughput with optimal energy use in each area of application.

          EclipseR Rotor

          Unique geometry for maximum energy savings

          In the sorting process, high levels of impurities cause rapid wear and a high maintenance effort for rotors. Voith's EclipseR rotor not only withstands high reject levels, but also saves up to 35% of your energy requirements. These are convincing arguments, as the EclipseR rotor is already successfully used in several production lines.

          Because of its novel foil geometry and configuration, the EclipseR rotor facilitates optimal screening efficiency, especially in screening applications that are heavily loaded with impurities. The flat but effective foil geometry of the EclipseR rotor generates a strong suction impulse and keeps the screen free for the highest throughput, even with high pulp consistencies of up to 5%. The EclipseR rotor was developed specifically for screening applications that are energy-intensive and heavily loaded with impurities. It is suitable for use in stock preparation, broke and pulp screening by Voith screening systems and all common machines from other manufacturers.

          MultiFoil Rotors

          Innovative blade geometry increases screening efficiency

          MultiFoil rotors are the ideal combination of the highest screening quality and throughput rates. Innovative blade geometry prevents the spinning of fibers and reduces pulsations. Thanks to the uniform through-flow profile with short suction impulses, the MultiFoil rotor leads to improvements in sustained screen openness with the highest separation rate.

          In addition, the concept causes lower pulsations and longer basket service life. Due to the oblique arrangement of the short blades, the rotor is noticeably less susceptible to spinning. Frequently, the rotor speed can be reduced, thereby fiber-preserving and energy-saving screening becomes possible. MultiFoil rotors were developed for use in stock preparation and approach flow and can be used for Voith screens and machines of other manufacturers.

          SmartBasket

            Voith screen baskets are the first equipped with RFID technology for easy identification, lifecycle tracking and asset management.

            The easiest way to manage your screen baskets

            With SmartBasket, Voith introduces a game-changing solution for your asset and lifecycle management. Voith screen baskets are the first equipped with RFID. Benefit of complete control of all your baskets at all times, across all your mills worldwide. Smart technology creates transparency, reduces inventories and costs. Voith turns screen baskets into SmartBaskets, making your work noticeably easier.
            SmartBasket by Voith
            Your benefits with SmartBasket

            • Asset management tool for 100% transparency
            • Tracking of your baskets over the entire life cycle
            • Easy ordering process via the Voith Paper Webshop
            • Cross-locational access to your screen basket inventory

            Read all details in the product brochure
            SmartBasket by Voith
            How it works

            Every new Voith basket comes with an RFID chip. Just scan it, add relevant information such as running time, condition or inventory location on a smartphone or tablet and update your dedicated database easily. The additional user-friendly, web-based cockpit solution provides increased transparency on the supply chain for the inventory of your mill – or even your complete corporate group.
            The longer you use SmartBasket, the more knowledge you gain about running time, performance and wear characteristics of each basket in each screen. You will also be able to optimize your inventory, as you never miss a basket.

            Keeping track of your inventory for screen baskets on a spreadsheet is not future-oriented. The combination of a simple RFID tag with a sophisticated database, however, most definitely takes asset management and life cycle tracking to the next generation.
            Axel Dreyer, Global Product Manager, Screening Products & Services
            SmartBasket app by Voith

            A smart app for new knowledge

            One look, one click – and you can manage each basket at just the right time and always have the right model at your fingertips. Smart technology for the intelligent paper production of the future.
