HyCon Go Governor

HyCon Go

Outstanding control performance for any kind of turbine

We offer the right solution for every application

    Voith is a supplier of low- and high-pressure governor systems, depending on turbine type, size and application. Our comprehensive HyCon Go product portfolio fulfills the needs of all hydropower plant owners and operators.

    One of our main drivers is to support power plant owners and operators in staying competitive and being prepared for future challenges. We take this as a task and continuously innovate our products. One of our latest innovations in the field of hydraulic power units is our HyCon GoHybrid. Follow the link below to learn more about the most energy-efficient, oil-reducing and cost-effective solution.

    Learn more about our HyCon Go Productfamily

      Hydraulic governor system
      HyCon GoActuate

      Our ​state-of-the-art hydraulic power unit that fits perfectly to your needs in safety and functionality and thus supplies your oil-hydraulic systems in a highly available and reliable way.

      Find out more
      Hydraulic governer system
      Hydraulic governor system
      HyCon GoHybrid

      Our highly innovative and efficient, hydraulic power unit with a particularly compact design to enter the next-generation of governor systems.


      FIND OUT MORE
      Digital governor system
      HyCon GoDigital

      Combining leading-edge technology with concepts that have proven their reliability and performance under all operating conditions over many years.


      Find out more

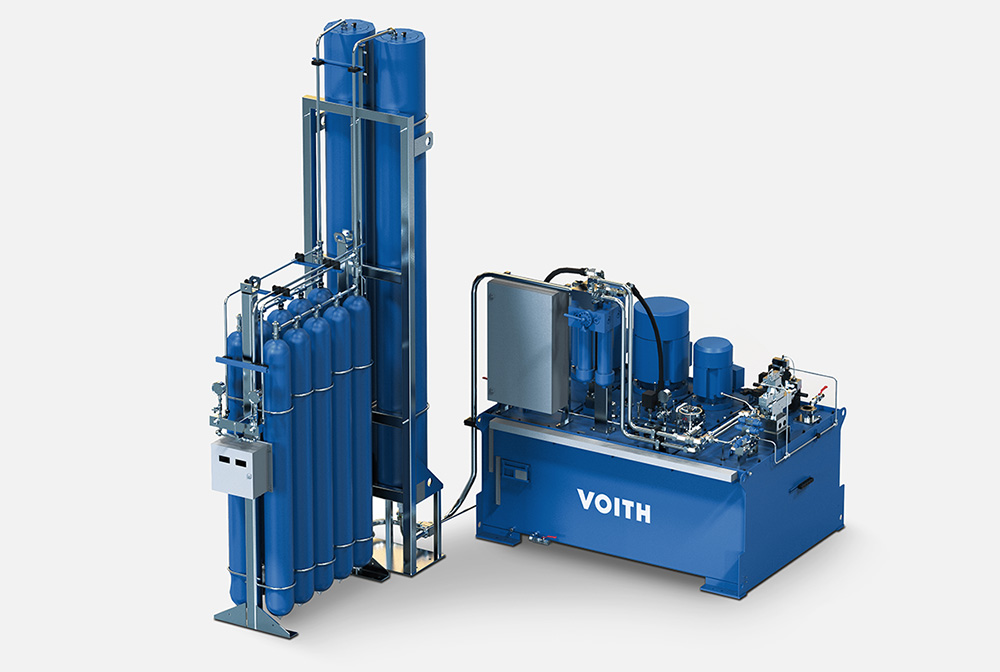

      HyCon GoActuate

        A well-established, reliable technology

        The HyCon GoActuate is our state-of-the-art hydraulic power unit that fits perfectly to your needs in safety and functionality and thus supplies your oil-hydraulic systems in a highly available and reliable way.

        It covers the whole spectrum of system pressures that one would find in hydropower plants today. Further, it offers replacement kits for mature low pressure solutions in order to extend the life time of your systems.

        In combination with our HyCon GoDigital, Voith combines subject-matter know-how with solid technology to deliver a valuable and powerful core system of your plant.

        Governor oil supply

        Low-pressure solutions (up to 63 bars) can be used for all types of turbines. They are a perfect fit for large hydraulic machines but are also an absolutely safe and reliable solution for any kind of hydraulic machine. Voith delivers all components for your customized solution:

        • Oil sump tank with pump group
        • Main valves for the energy production
        • Pressure tank for energy storage
        • High-pressure air compressors for air replenishment
        • Sensors and actuators

        High-pressure solutions (up to 160 bars) can be used for all types of turbines. They are often a cost-effective solution for small and medium sized hydraulic machines. Voith delivers all components for your customized solution:

        • Oil sump tank with pump groups
        • Main valves for the energy production
        • Piston accumulator station with nitrogen filling
        • Sensors and actuators

        Governor control elements

        The importance of interfacing the control system to the machine is frequently underestimated. The electro-hydraulic converters to operate the servomotors, which are the main control elements for the hydroelectric power conversion processes, are individually designed for each power unit. Our wealth of experience in hydropower engineering helps us create the required level of reliability and control accuracy. To add matching actuators to the digital governor, we design and deliver all required first class control elements for the turbine control. Voith delivers its own specialized manufactured components for governor controls:

        • Control valves up to DN 200
        • Moving-coil type servo valves (TSM 6) including quick shutdown device

        The advantage of moving-coil type servo valves compared to a standard proportional valve is the up to three times longer life-time.

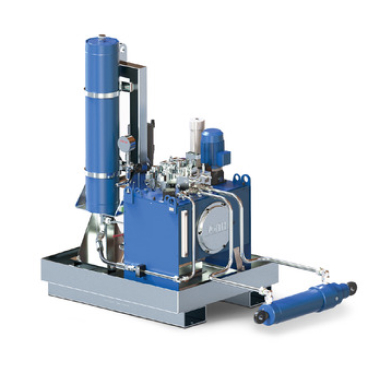

        HyCon GoHybrid

          The next generation hydraulic turbine governor system

          The HyCon GoHybrid is a highly innovative and efficient, hydraulic power unit with a particularly compact design to enter the next-generation of governor systems. Standardized components reduce maintenance costs for operators.
          The oil system’s reduced complexity lowers the required oil volume by up to 60 percent compared to conventional high-pressure units and by up to more than 90 percent when measured against low-pressure units, thus providing a more environmentally friendly solution. The HyCon GoHybrid is a state-of-the-art concept that goes beyond the common technical specifications and conventional rules.

          Advantages at a glance:

          • Significant lower oil content
          • Lower maintenance costs
          • Improved energy efficiency
          • Compact and less complex design
          • Reduced installation complexity
          • Transient simulation of the complete hydraulic system guarantees perfect sizing

          We deliver unrivalled fast installation and commissioning



          The HyCon GoHybrid reduces the installation complexity. With only a few interfaces the connection to existing digital governor systems is simplified. See for yourself the striking advantage of the installation process in the following:

          See for yourself

          The assembly of our next generation governor HyCon GoHybrid is conducted within the shortest time and, due to the simplicity of the system, with little effort.

          Phase 1

          Delivery of the high-pressure unit, control cabinet and servomotor.

          Phase 2

          Disassembly of the old wicket gate servomotor and assembly of the new servomotor.

          Phase 3

          The new HyCon GoHybrid hydraulic preassure unit and the control cabinet are positioned.

          Phase 4

          Connection of the hydraulic circuit to the new servomotor. Afterwards the hydraulic oil is filled in. In the following sensors and motors only need to be connected, as they are delivered pre-wired.

          Phase 5

          The installation process is finalized in a few steps within the shortest time.

          hyConGoCalculatorRequirements

          Art des Reglersystems mit längerem Text

          asdf

          hyConGoCalculatorRequirementsFailed

          The HyCon GoHybrid ist only limited suitable for your system. Our experts will be happy to advise you on your individual requirements.

          The properties you have selected do not meet the requirements for using the GoHybrid. Leave us your contact details to be contacted by one of our experts about possible alternatives for your system or get in touch with us directly via the contact below.

          Check again

          HyCon GoDigital

            Fullfill strict grid requirements and ensure high performance

            Our HyCon digital turbine governors combine leading-edge technology with concepts that have proven their reliability and performance under all operating conditions over many years. By using the best hardware and software available, this governor offers the highest possible availability. Because of its modular and flexible design, the governor can be customized to satisfy the requirements of every type of turbine, power plant and business model. The HyCon GoDigital is based on Siemens SIMATIC S7 components and supports a wide range of open interfaces including IEC 60870-5-101/103/104 and IEC 61850.

            It further includes all control modes required for any type of turbine and allows plant owners to act highly flexible in their markets:

            • Speed control
            • Opening control (with or without frequency influence)
            • Power control (with or without frequency influence)
            • Water level control (with or without frequency influence)
            • Flow control
            • Pump control
