Environment. Quality. Reliability.

With the innovative stock preparation products of the BlueLine family, customers profit from proven Voith quality and at the same time lower costs for energy, fiber, water and maintenance as well as enhanced runability and safety.

Discover the BlueLine Product Portfolio

    Please Select a Process Step

    Pulping

    The suitable technology for each resource

    Fibers from virgin pulp, recovered paper or paper machine broke are pulped with water to form a suspension in the  “Pulping” process step. An optimal pulping technology can be selected, depending on the type of furnish, production output and the contaminant included in the furnish. Pulping systems for recovered paper not only break down the fiber material, but also remove large non-recyclable components (rejects). It is, therefore, important to balance the main pulping parameters such as stock consistency, temperature, mechanical attrition, dwell time and chemical additives so that trash components are not broken down unnecessarily and, thus, made more difficult to screen later in the process. Pulping of recovered paper also has to consider the various parameters for downstream ink removal if used for graphical paper products.
    IntensaDrum Duo

    IntensaDrum Duo is a two-piece drum pulper for stock preparation system with high production. The machine design is based on our succesfull IntensaDrum and implements the long experience of Voith drum pulpers. Higher than standard pulping consistency and efficient screening process are key points adding to a long list of benefits with the IntensaDrum technology. In addition, modular components transfer the IntensaDrum Duo technology and reliability to a new level.

    PRODUCT DETAILS
    Enhanced Safety
    Reduced Fiber Loss
    Higher Runnability
    IntensaDrum

    IntensaDrum is a pulping drum for efficient pulping. It performs in a consistency range of 15% to 20%, gently pulping the paper and separating the fibers from contaminants.

    Product Details
    Lower Maintenance Cost
    Enhanced Safety

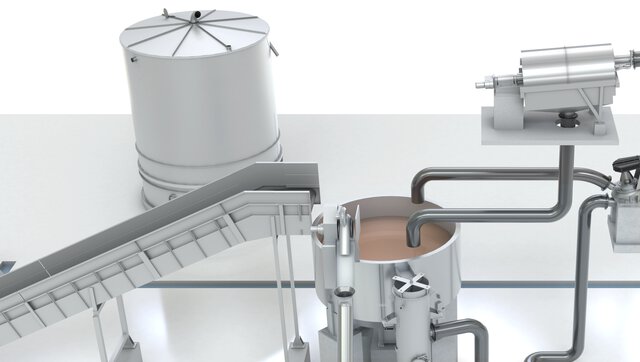

    BluePulp LC
    BluePulp LC

    LC Pulping system for recovered paper containing IP-R, JM, IPU, IM, ISD, ZW3. Only an appropriate sized LC-Pulping system with the required selection of machines results in an optimal pulping technology. This can be selected depending on the type of furnish, production and the contaminant included in the furnish.

    Product Details
    Lower Maintenance Cost
    Reduced Fiber Loss
    Higher Runnability
    Lower Energy Consumption

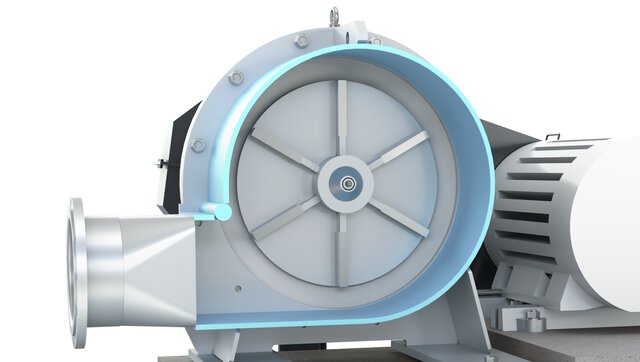

    IntensaPump
    IntensaPump

    Highly contaminated stock flows in the pulping system for recovered paper can only be pumped reliably and largely free of blockages using a special pump. Whether in LC or HC system, IntensaPump pumps the critical contaminants to the next machine very reliably in both systems, BluePulp LC and BluePulp HC. Featuring large nozzle diameters and a free-flow impeller, IntensaPump is designed for plug-free pumping of stock flows with a high proportion of contaminants. The impeller has a long service life thanks to its hard facing. A frequency converter offers the possibility for optimized pump speed and reduced energy consumption for intermittent pumping operation.

    Product Details
    Lower Maintenance Cost
    Higher Runnability
    IntensaMaXX

    The IntensaMaXX pulper detrashing machine prevents any stringings and therefore allows for the maximum concentration of contaminants. Fiber loss is reduced to a minimum through a washing cycle.

    Product Details
    Higher Runnability
    IntensaPulper

    IntensaPulper facilitates efficient pulping of fibers from virgin pulp, recovered paper or paper machine broke in stock preparation.

    Product Details
    Higher Runnability
    Lower Energy Consumption

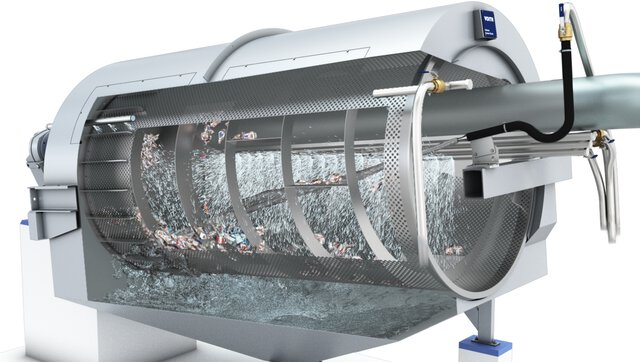

    IntensaScreenDrum

    The IntensaScreenDrum is a newly developed drum screen for efficient reject washing with minimum fiber loss. Thanks to a closed hood the cleanliness of the pulper area and thus safety is improved.

    Product details
    Enhanced Safety
    Reduced Fiber Loss

    Cleaning

    Removal of contaminants with minimal fiber loss

    Cleaning systems are used to remove coarse or fine heavy and lightweight contaminants as well as entrained air. This provides a clean fiber material but also reduces wear and tear in the downstream equipment. The cleaners are used for recovered paper stock systems, approach flow systems, and stock preparation systems with virgin fibers.

    To minimize fiber loss, the rejects have to be processed in subsequent cleaner stages. There are two or three cleaner stages in Voith's recovered paper systems. In the approach flow system, no more than four stages are required.

    InduraClean

    InduraClean is a modular system for heavyweight cleaning that consists of a redesigned cleaner bank and various cleaners that are perfectly matched to one another. Depending on process requirements, the system can focus on production volume, energy consumption, or separation efficiency.

    Product details
    Lower Maintenance Cost
    Reduced Fiber Loss
    Higher Runnability
    Lower Energy Consumption
    InduraHiClean

    InduraHiClean is a high-consistency cleaner that removes abrasive contaminants directly after the pulper. With the use of IDH cleaners, the wear of machines located downstream in the process – such as screens or deflakers – can be minimized.

    Product Details
    Lower Maintenance Cost
    Reduced Fiber Loss
    InduraPro

    For stringent removal efficiency requirements, the InduraHiClean cleaners can be combined in a two-stage protector system called InduraPro. Even small stones or sand can be separated with this system.

    Product Details
    Lower Maintenance Cost
    Reduced Fiber Loss

    Screening / Fractionation

    Removal of undesirable contaminants

    Immediately before the stock suspension enters the headbox, pressure screens are installed both in the main flow and in the ModuleJet dilution stream if provided. Since these screens provide a last barrier before the paper machine to prevent damage by foreign bodies, the connection between screen and headbox must be directly linked and completely closed. Screening can also play a key role in paper machine broke treatment for removing trash accidentally introduced in the broke.
    IntegraScreen

    The flow-optimized machine housing results in constant flow and pressure conditions around the basket. Together with the use of the experienced Voith rotors and screening baskets, a high sticky reduction is achieved.

    Product Details
    Lower Maintenance Cost
    Reduced Fiber Loss
    Higher Runnability
    Lower Energy Consumption
    IntegraGuard

    The homogeneous screen passing velocity reduces the formation of deposits or stringings in the sorter.

    Product Details
    Lower Maintenance Cost
    Higher Runnability
    IntegraCombisorter

    IntegraCombisorter is a continuously operated, highly efficient reject screen for separating plastics and light rejects. It provides high yield with minimum fiber loss. Thanks to the very high consistency in the reject discharge, no other thickening machine is required.

    Product Details
    Reduced Fiber Loss

    Flotation

    Improve optical cleanliness

    The primary goal of flotation deinking is the selective removal of printing ink, stickies and hydrophobic impurities in general from the stock suspension, thus improving the brightness and optical appearance of the product. Fillers and coating particles can also be removed efficiently with flotation.

    Selectivity is important for retaining useful material such as fibers in the accepts. The selectivity criteria is the wettability of the particle surfaces. The more hydrophobic the particle surface, the better it adheres to an air bubble and the better the chance of its removal.

    InjectaCell

    The InjectaCell flotation system removes contaminants from the stock suspension with minimal fiber loss. Due to the two-stage design, the flotation process is extremely efficient.

    Product Details
    Lower Energy Consumption
    InjectaCell Compact

    InjectaCell Compact achieves high savings in investment and maintenance in flotation through eliminating the secondary flotation cell.

    Product Details
    Lower Maintenance Cost
    InjectaPump

    InjectaPump guarantees stable operation, even with highly varying foaming behavior and changing amounts of foam. Since it combines foam destroyer, subsequent de-aeration and pump all in one machine, the investment cost is low.

    Product Details
    Lower Maintenance Cost

    Washing / Thickening / Dewatering

    The purpose of washing is to remove undesirable particles smaller than 30 µm from the fiber suspension through a separation process according to the filtration principle. In contrast to thickening, which mainly removes water, washing separates solids from solids. At the same time, however, dissolved and colloidal contaminants are also removed with the filtrate.

    Thickening is important for increasing the stock consistency as required for further processing, minimizing storage volumes and for water loop separation. With the dewatering process, the stock consistency is increased from about 5 to 30% or more to prepare for the next process stage and for complete water loop separation.
    InfiltraScrewpress

    InfiltraScrewpress is part of the Compact Dispersion System in stock preparation. The system provides reliable operation with only three machines.

    Product Details
    Lower Maintenance Cost
    Higher Runnability
    Lower Energy Consumption
    InfiltraDiscfilter

    InfiltraDiscfilter is the latest generation in dewatering without filter bags. Through a combination of proven technologies, the suspension can be dewatered reliably and almost maintenance-free.

    Product Details
    Lower Maintenance Cost
    Reduced Fiber Loss
    Higher Runnability
    Lower Water Consumption
    Thickener EFK

    The Thickener EFK is a solid and flexible all-rounder. It is suitable for thickening pulp prior to a screw press or storage chests. In the broke preparation, it evens out consistency fluctuations, enhances storage capacity and thus contributes to stable paper machine operation.

    Product details
    Lower Maintenance Cost
    Higher Runnability
    Lower Energy Consumption

    Dispersion / Bleaching

    Reduce unwanted contaminants and improve optical characteristics

    Disperging is used in recovered fiber systems for reducing unwanted contaminants to a size not interfering with downstream processing. Disperging also has the task of dislodging and reducing residual ink particles from the recovered fibers. This is a precondition for efficient deinking in flotation cells. In recovered fiber systems for brown papers (OCC), disperging must also improves fiber strength  in addition to reducing unwanted contaminants. In bleaching systems, dispergers are used for intense mixing of the bleaching agents with the fibers.

    Bleaching improves the optical characteristics of the stock. The brightness is increased with the penetration of chemical additives by bleaching the fibers and colour stripping as well as moving the colour spectrum.

    Voith InfibraDisp
    InfibraDisp

    InfibraDisp is part of the Compact Dispersion System in stock preparation. The system provides reliable operation with only three machines.

    Product Details
    Lower Maintenance Cost
    Higher Runnability
    Lower Energy Consumption
    SpeedHeater

    SpeedHeater is part of the Compact Dispersion System in stock preparation. The system provides reliable operation with only three machines.

    Product Details
    Higher Runnability
    Lower Energy Consumption

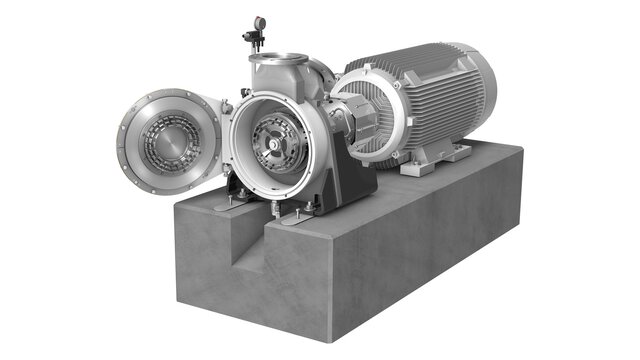

    Refining / Deflaking

    Improved stock quality through effective fiber treatment

    Voith refiners increase the specific fiber surface of each single fiber resulting in improved stock quality for the paper machine.
    Fiber treatment includes the most important actuating elements in terms of disintegration and surface treatment of each single fiber. Deflaking breaks up fiber bundles to prevent sheet brakes, thereby directly improving the paper machine runability. Refining increases the specific fiber surface of each single fiber resulting in higher strength potential due to fiber-fiber bonding and higher chemical absorption capacity.

    Voith is the market leader for compact disk applications in the field of fiber treatment. Disk applications provide very good accessibility, enabling a fast and secure filling change with low downtimes.
    InfibraFiner

    The InfibraFiner provides next generation refining by combining cutting-edge technology, highest capacity, ultra-modern industrial design, and digitalization.

    Product details
    Lower Maintenance Cost
    Enhanced Safety
    Higher Runnability
    Lower Energy Consumption

    The perfect stock preparation for packaging paper

      Customers all over the world rely on Voith BlueLine systems for OCC stock preparation. The reason: Stock preparation contributes to a large extent to excellent paper quality. The technologically leading solutions set benchmarks in efficiency and quality and have proven themselves in countless applications worldwide.

      The perfect stock preparation for all virgin fiber-based papers

        For the manufacture of products based on virgin fibers, we offer our customers integrated solutions for an efficient and sustainable paper manufacturing process. Our experienced experts design customized systems for a wide range of requirements and paper grades, from tissue to specialty papers, board and packaging.
