TurboBelt TPXL

Intelligent coupling technology

TurboBelt TPXL family: Mining is your business – improving the material handling process is ours

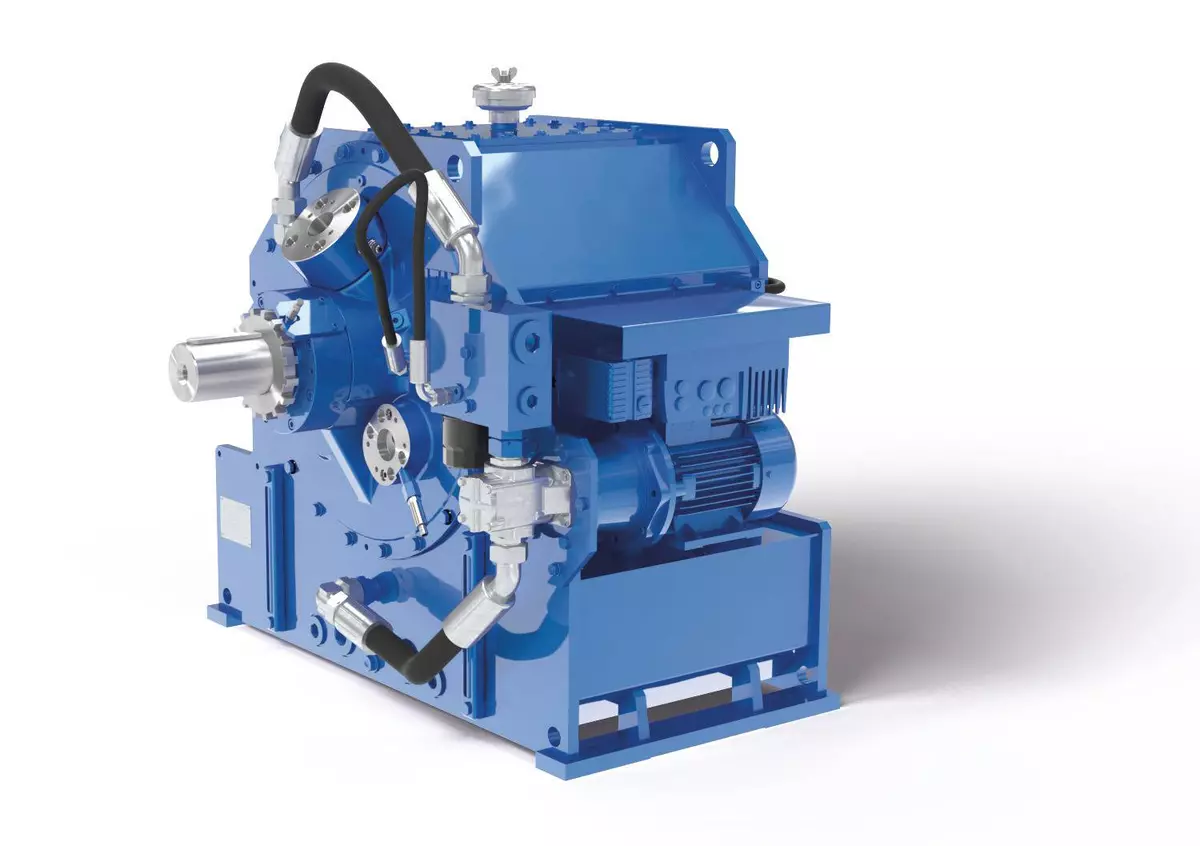

    ​TurboBelt TPXL

    Offering optimized start-up behaviour, easy installation and increased conveyor belt productivity: TurboBelt TPXL

    Facilitating accurate torque control, our TurboBelt TPXL increases the conveyor belts’ lifetime whilst facilitating continuous production output. Furthermore, our compact solution is easy to install, whether operating in an open pit, underground, linking production to and from a harbor or using an overland conveyor network.

    CONTACT OUR EXPERTS

    Benefits and uses

    • System designed exclusively for belt conveyors
    • Quick and simple to install
    • Extra functionality integrated
    • Remote service capability
    • For hazardous areas and explosive atmospheres

    Maximizing your belt conveyor productivity is simple with our TurboBelt TPXL product familiy

      Helping you find your perfect TurboBelt TPXL

        In order to assist you please provide the following data:

        Your application

        * Mandatory fields

        kW
        rpm

        Explosion proof

        In order for you to utilize the TurboBelt TPXL Selection Guide, please fill in the contact data required below.

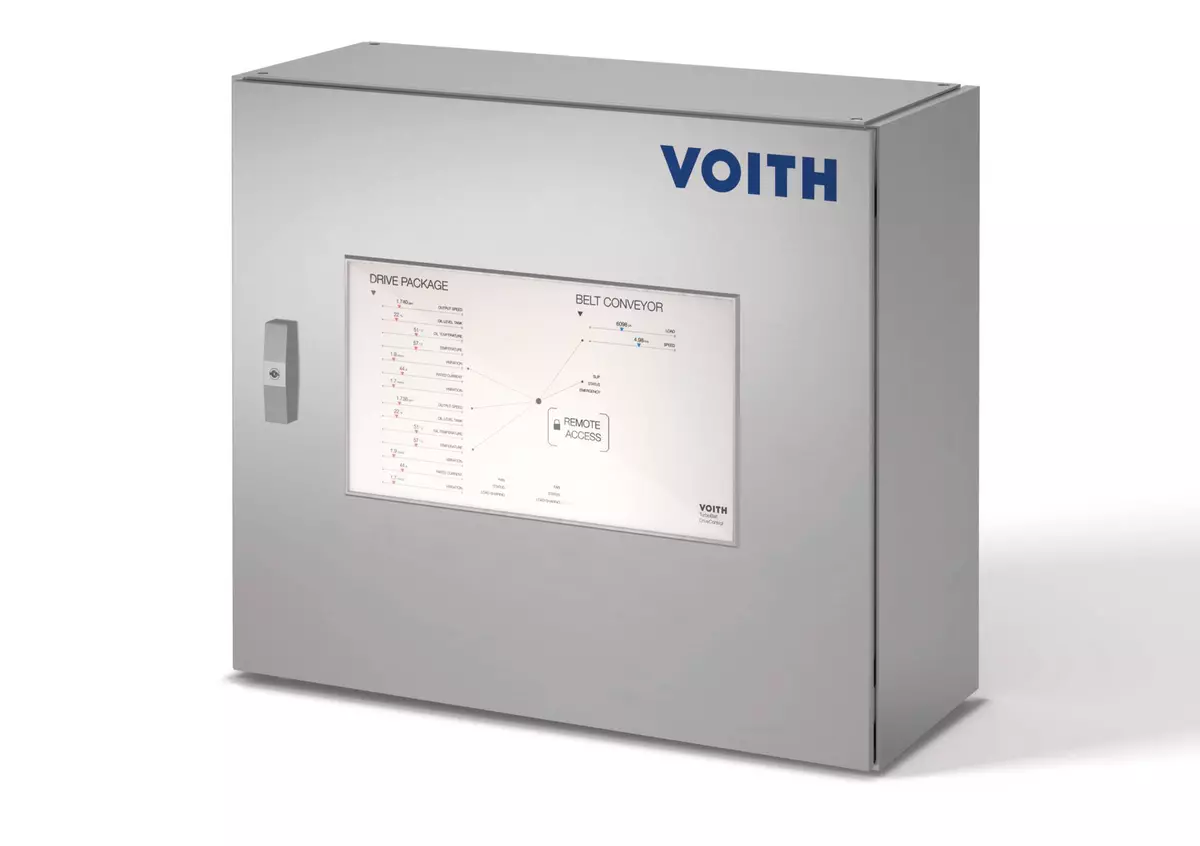

        TurboBelt DriveControl

          TurboBelt DriveControl

          Your automation intelligence control center

          Optimizing coupling and conveyor performance in all operational modes is simple with the TurboBelt DriveControl. This central communication device ensures perfect conveyor start-up in all conditions. In order to achieve fast commissioning, the system is pre-parametrized and standard communication protocols are used ensuring quick and easy driveline integration. Furthermore, the TurboBelt DriveControl facilitates remote access through a secure VPN.

          Your 5 in 1 solution

          Automation – Intelligent Control

          • Automated and accurate controlled conveyor belt start-up
          • Intelligent filling control ensures electrical grid protection
          • Operational feedback provided
          • On-site parameter adjustments are possible

          Installation – Easy integration

          • Complete control logic installed for conveyor belt start-up
          • Pre-parametrized controller delivery
          • All sensors are wired to a frequency converter
          • Main communication via several BUS-protocols
          • Device Configuration File (EDS) provided

          Operation – Special functions

          • Hot stand-by mode declutches the driven from the driver side
          • Switch one drive off to avoid downtime and increase your flexibility
          • Electrical grid protection through load-sharing
          • Heavy load start performed by our coupling

          Service – Virtual Private Network (VPN) support

          • Secure remote VPN support via Ethernet or a GSM-Network
          • World-wide commissioning and operational support
          • System integration into existing infrastructure

          Precisely fitting – Compact solution

          • Designed to fit perfectly into the drive train
          • Center height is aligned to the motor and gearbox
          • Highly efficient drive solution
          • Suitable in hazardous areas and explosive atmospheres

          Technical details

            Power range

            Type 1000 rpm 1200 rpm 1500 rpm 1800 rpm
            TurboBelt 315 TPXL -

            160 kW

            215 HP

            315 kW

            380 kW

            510 HP

            TurboBelt 500 TPXL -

            260 kW

            348 HP

            500 kW

            600 kW

            804 HP

            TurboBelt 800 TPXL -

            415 kW

            556 HP

            800 kW

            960 kW

            1286 HP

            TurboBelt 1250 TPXL 375 kW

            640 kW

            858 HP

            1250 kW

            1500 kW

            2010 HP

            TurboBelt 2500 TPXL 740 kW

            1280 kW

            1717 HP

            2500 kW

            2500 kW

            3350 HP

            Dimensions

            Dimensions of the TurboBelt TPXL
            Type A B C D G1 H1 G2 H2
            TurboBelt 315 TPXL Will be released Jun-2020
            TurboBelt 500 TPXL 890 550 1085 820 90 140 90 130
            TurboBelt 800 TPXL 935 565 1120 906 100 160 100 170
            TurboBelt 1250 TPXL 1014 615 1364 972 110 200 110 190
            TurboBelt 2500 TPXL 1137 685 1532 1080 130 200 130 190

            Dimensions in mm

            -20 °C
            Standard ambient Temperature down to -20 °C
            -40 °C
            As option down to -40 °C ambient possible
            50.000
            operating hours until first overhaul
            8
            Up to 8 couplings per belt with one TurboBelt DriveControl possible
            1.000
            Over 1.000 filled controlled couplings sold
