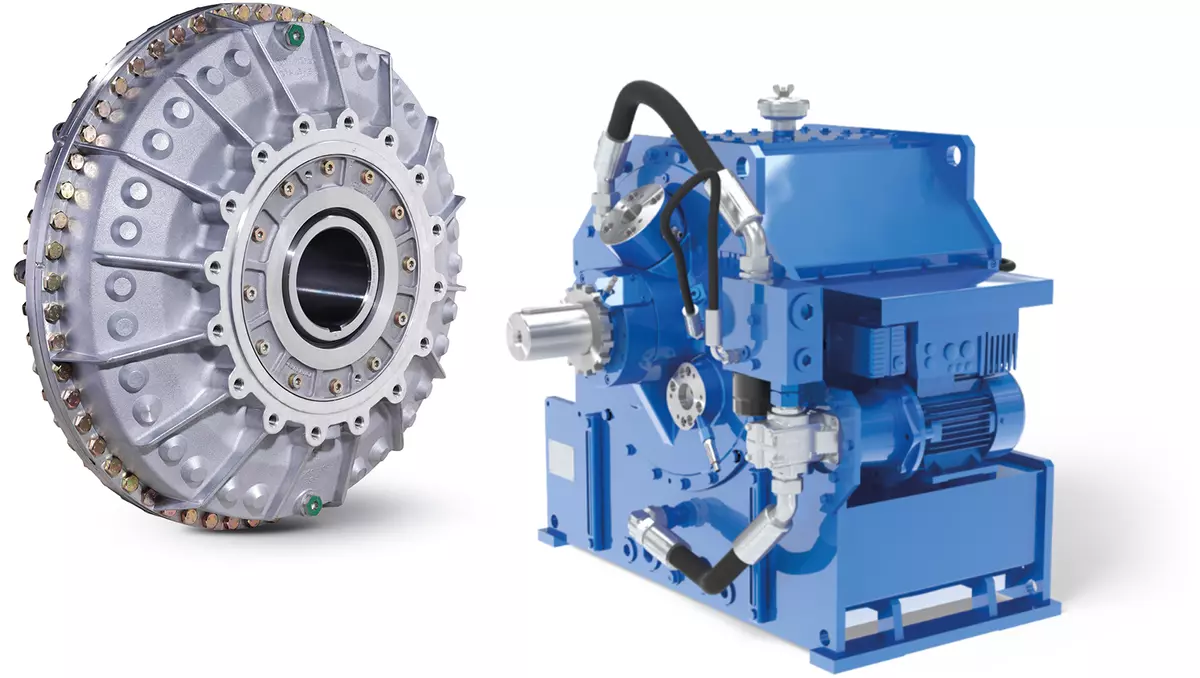

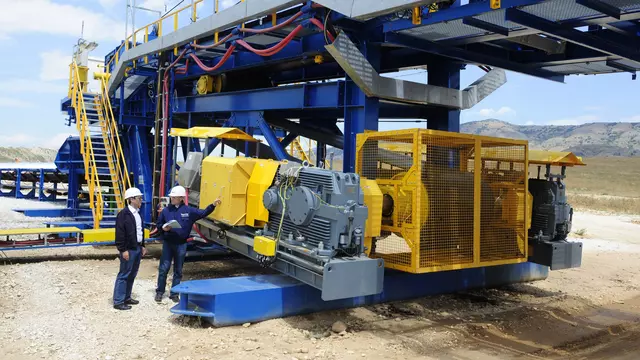

    Voith’s product portfolio includes constant-fill fluid couplings, fill-controlled fluid couplings, fluid couplings for diesel engines and customer-specific drive solutions.

    A highly efficient and reliable drive system increases productivity and provides peace of mind. Whether you require fluid couplings or a customized drive package, Voith is your partner of choice. We assist you in gently accelerating your driven machine, owing to the hydrodynamic principle, thereby extending the lifetime of your system. At the same time, torque is limited, load sharing is facilitated, and torsional vibrations are dampened. The coupling protects the drive system from damage even under extreme operating conditions, reducing downtime and ensuring a continuous production process.

    Furthermore, our drive solutions are reliable and precisely tailored to each drive system – from individual couplings to complete drive-line solutions. The transmittable power ranges from 300 W up to 6 MW.

    Contact our experts
    Sustainable T

    Pioneering sustainable couplings

      For us, industrial sustainability is not a trendy slogan. We research and work with all our strength to fulfill our self-imposed responsibility in every respect. Our Voith fluid couplings have always stood for durability, high availability and low downtimes as well as a wide range of applications thanks to their modular design. With Sustainable T, we have further developed our hydrodynamic couplings to future-proof our customers for ensured sustainability and reliability.

      Its superior performance comes from within. In the past, wherever water-operated couplings could not be used, mineral oil has been the preferred operating medium. We’ve re-imagined the concept with Sustainable T and now also enable the operation of our Voith fluid couplings with sustainable, rapidly biodegradable fluids. For water-powered couplings as well, the future has begun with Voith. Because it is now possible to use antifreeze, there is greater potential to use them in low-temperature applications.

      Another forward-looking aspect is the materials used in our couplings. We reviewed our components and, where possible, have completely replaced them with environmentally compatible materials. This means that most of our components are completely pollutant-free already. By doing so, we not only achieve maximum safety and health protection for our employees and customers but also ensure a clean recycling process at the end of the product life cycle.

      With Sustainable T, we are pioneering the field of sustainable coupling technologies. To this end, we are in intensive discussions with our customers and suppliers. Today and tomorrow.

      Developed for above average durability

      Developed for above average durability

      Harmless materials and clean recycling process

      Harmless materials and clean recycling process

      Works with water or rapidly biodegradable fluids

      Works with water or rapidly biodegradable fluids

      Constant-fill fluid couplings

        Constant-fill fluid couplings are self-contained drive components mainly used for soft start, torque limitation, and dampening of torsional vibrations within the drive line. The different models vary in type and design of volumetric chambers; this determines the startup behavior.

        T – basic version

        Voith | Constant-filled type T fluid coupling
        Type T fluid coupling is the basic version of constant-filled coupling; such couplings are used in drives for different applications, such as cranes, bucket conveyors, stackers, and reclaimers. These couplings are particularly suitable if overload protection and vibration damping are required. This fluid coupling is also available with two work circuits (type DT). The parallel-acting circuits double the power transmission. Your drive equipment is then protected with the added benefit of increasing system productivity.



        Voith also offers fluid couplings with water as the operating medium (type TW), which is critical for operations located in potentially explosive atmospheres. Furthermore, spheroidal cast iron outer casings (type TU) are available and meet the required material specifications.

        Benefits and uses

        • Load-free motor run-up
        • Smooth startup of the driven machine
        • Overload drive protection
        • Dampens torsional vibration in the drive chain
        • Protects system components, thereby increasing service life
        • Robust and unsusceptible to environmental influences
        • Wear-free power transmission; less maintenance and repair work
        • Automatic load sharing in multi-motor drives protects against motor overload
        • Sequential starting of the multi-motors reduces the load on the supply circuit

        Typical fields of use

        • Stacker and reclaimer
        • Bucket elevator
        • Cranes
        • Separators
        • Yaw drives

        Performance chart

        Voith | Performance chart of the type T fluid coupling

        Dimensions

        Voith | Dimensions of the type T fluid coupling
        Typ A D L d1 max d2 max l2 max
        154 T 80 190 143 32 28 60
        154 DT 102 190 165 32 28 80
        206 T 97 248 183 42 42 80
        206 DT 137 248 223 42 42 114
        274 T 135 328 202 70 55 90
        274 DT 175 328 242 70 55 125
        366 T 198 427 276 90 65 120
        422 T 218 470 320 100 80 135
        487 T 245 556 352 120 90 155
        562 T 269 634 385 130 110 170
        650 T 317 740 469 140 120 200
        750 T 366 846 529 150 135 240
        866 T 421 978 610 160 150 265
        866 DT 645 978 854 180 on request on request
        1000 T 441 1118 651 180 160 280
        1150 T 505 1295 715 180 180 320
        1150 DT 830 1295 1040 180 180 350

        Dimensions in mm

        TV – with delay chamber

        Voith | Constant-filled type TV fluid coupling with delay chamber
        The type TV fluid coupling is comparable to the type T fluid coupling; however, enhanced with a delay chamber. When starting up, torque is reduced, enabling the driven machine to start gently. The coupling also protects the drive against overload and dampens torsional vibrations, thereby protecting your system and increasing productivity. The type TV fluid coupling is predominantly used in drive conveyors and crushing and shredding machine applications. This fluid coupling is also available with two coaxially arranged work circuits (type DTV); the parallel-acting circuits double the power transmission.



        Additionally, Voith offers fluid couplings with water as the operating medium (type TWV). This is critical when operations are located in potentially explosive atmospheres. Furthermore, spheroidal cast iron outer casings (type TUV) are available and meet the required material specifications.

        Benefits and uses

        • Load-free motor run-up
        • Smooth startup of the driven machine
        • Overload drive protection
        • Dampens torsional vibration in the drive
        • Protects system components, thereby increasing service life
        • Robust and unsusceptible to environmental influences
        • Wear-free power transmission; less maintenance and repair work
        • Automatic load sharing in multi-motor drives protects against motor overload
        • Sequential startup of the motors reduces the load on the supply circuit

        Typical fields of use

        • Belt conveyors
        • Plate conveyors
        • Stacker and reclaimer
        • Crushers
        • Mills

        Performance chart

        Voith | Performance chart of the type TV fluid coupling

        Dimensions

        Voith | Dimensions of the type TV fluid coupling
        Type A D L d1 max. d2 max. l2 max.
        274 TV 172 328 239 70 55 125
        274 DTV 244 328 300 42 55 125
        366 TV 225 424 303 90 65 120
        422 TV 257 470 359 100 80 135
        487 TV 297 556 403 120 90 155
        562 TV 333 634 449 130 110 170
        650 TV 384 740 536 140 120 200
        750 TV 440 846 603 150 135 240
        866 TV 493 978 682 160 150 265
        866 DTV 905 978 on request on request on request on request
        1000 TV 547 1118 757 180 180 280
        1150 TV 670 1295 880 180 180 320
        1150 DTV 1208 1295 1418 180 180 350

        Dimensions in mm

        TVV – with enlarged delay chamber

        Voith | Constant-filled type TVV fluid coupling with enlarged delay chamber
        When starting up, the working circuit has much less operating fluid. The driven machine starts up more gently, and the torque limitation behavior is significantly stronger during the startup. The coupling also protects the drive against overload and dampens torsional vibration, protecting your system and increasing productivity.

        The type TVV fluid coupling is predominantly used in conveyor drives (e.g., belt conveyors and plate conveyors) and shredding machine applications. This fluid coupling is also available with two working circuits (type DTVV); the parallel-acting circuits double the power transmission.

        Furthermore, Voith offers fluid couplings with water as the operating medium (type TWVV). This is critical when operations are located in potentially explosive atmospheres. Again, spheroidal cast iron outer casings (type TUVV) are available and meet relevant material requirements..





        Benefits and uses

        • Load-free motor run-up
        • Smooth startup of the driven machine
        • Overload drive protection
        • Dampens torsional vibration in the drive
        • Protects system components, thereby increasing service life
        • Robust and unsusceptible to environmental influences
        • Wear-free power transmission; less maintenance and repair work
        • Automatic load sharing in multi-motor drives protects the motor against overload
        • Sequential startup of the motors reduces the load on the supply circuit

        Typical fields of use

        • Belt conveyors
        • Plate conveyors
        • Shredders

        Performance chart

        Voith | Performance chart for TVV fluid coupling with enlarged delay chamber

        Dimensions

        Voith | Dimensions of the TVV fluid coupling with enlarged delay chamber
        Type A D L d1 max. d2 max. I2 max.
        274 TVV 204 328 260 42 55 90
        365 TVV 296 424 374 90 65 120
        422 TVV 335 470 437 100 80 135
        487 TVV 382 556 488 120 90 155
        562 TVV 428 634 544 130 110 170
        650 TVV 494 740 646 140 120 200
        750 TVV 567 846 730 150 135 240
        866 TVV 641 978 830 160 150 265
        866 DTVV 1125 978 on request
        1000 TVV 686 1118 896 180 160 280
        1150 TVV 883 1295 1093 180 180 320

        Dimensions in mm

        TVS – with delay chamber and annular chamber

        Voith | Constant-filled type TVS fluid coupling with delay chamber and annular chamber
        The type TVS fluid coupling is comparable to the fluid coupling type TV; however, enhanced with an annular chamber which results in more operating fluid in the coupling. A high thermal capacity facilitates higher starting frequencies and reversing operations, safeguarding the drive against overload and dampening its torsional vibrations, thus protecting your system and increasing productivity. The type TVS fluid coupling is used primarily in crusher drives.



        Additionally, Voith offers fluid couplings with water as the operating medium (type TWVS). This is critical when operations are located in potentially explosive atmospheres. Furthermore, spheroidal cast iron outer casings (type TUVS) are available and meet the required material specifications.





        Benefits and uses

        • Load-free motor run-up
        • Smooth startup of the driven machine
        • Overload drive chain protection
        • Damps torsional vibration in the drive chain
        • Protects system components, thereby increasing service life
        • Robust and unsusceptible to environmental influences
        • Wear-free power transmission; less maintenance and repair work
        • Automatic load sharing in multi-motor drives protects against motor overload
        • Sequential startup of the motors reduces the load on the supply circuit

        Typical fields of use

        • Crushers

        Performance chart

        Voith | Performance chart of the TVS fluid coupling with delay chamber and annular chamber

        Dimensions

        Voith | Dimensions of the TVS fluid coupling with delay chamber and annular chamber
        Type A D L d1 max. d2 max. l2 max.
        650 TVS 384 761 536 140 100 170

        Dimensions in mm

        TVVS – with enlarged delay chamber and annular chamber

        Voith | Constant-filled type TVVS fluid coupling with enlarged delay chamber and annular chamber
        The type TVVS fluid coupling is comparable to the type TVV fluid coupling, although enhanced with an annular chamber. When idling, the fluid levels in the delay chamber, working circuit, and annular chamber are identical. The driven machine starts up exceptionally gently, and the torque increase depends upon the load. Protecting your system while increasing its productivity, the coupling also provides drive protection against overload and dampens torsional vibrations. The type TVVS fluid coupling is predominantly used in belt conveyor drives..



        Additionally, Voith offers fluid couplings with water as the operating medium (type TWVVS). This is critical when operations are located in potentially explosive atmospheres. Furthermore, spheroidal cast iron outer casings (type TUVVS) are available and meet the required material specifications.

        Benefits and uses

        • Load-free motor run-up
        • Gentle startup of the belt conveyor – up to 45s
        • Drive overload protection
        • Dampens torsional vibration in the drive
        • Protects system components, thereby increasing service life
        • Robust and unsusceptible to environmental influences
        • Wear-free power transmission; less maintenance and repair work
        • Automatic load sharing in multi-motor drives protects against motor overload
        • Sequential startup of the motors reduces the load on the supply circuit
        • Automatic adjustment to the load condition of the belt through extended torque build-up

        Typical fields of use

        • Belt conveyors

        Performance chart

        Performance chart of the TVVS fluid coupling with enlarged delay chamber and annular chamber

        Dimensions

        Voith | Dimensions of the TVVS fluid coupling with enlarged delay chamber and annular chamber
        Type A D L d1 max. d2 max. l2 max.
        422 TVVS 335 470 437 100 80 135
        487 TVVS 382 556 488 120 90 155
        562 TVVS 428 660 544 130 110 170
        650 TVVS 494 761 646 140 120 200
        750 TVVS 567 877 730 150 135 240
        866 TVVS 641 1017 830 160 150 265
        1000 TVVS 686 1165 896 180 160 280
        1150 TVVS 883 1340 1093 180 180 320

        Dimensions in mm

        TV..F – with centrifugal valves

        Voith | Constant-filled type TV..F fluid coupling with centrifugal valves
        The type TV..F fluid coupling is a constant-filled coupling used in armored face conveyors, transfer conveyors, and crusher drives. Centrifugal valves control the filling and draining of the working circuit of the coupling and, thus, the power transmission. The motor starts almost load-free, even in the event of a voltage drop. The coupling torque is released shock-free and continuously until the required breakaway torque of the system is achieved. This permits overloaded-driven machines to be started up exceptionally gently, and the increase in torque depends on the load. The coupling also protects the drive against overload and dampens torsional vibration, protecting your system and increasing productivity.

        Additionally, Voith offers fluid couplings with water as the operating medium (type TWV..F). This is critical when operations are located in potentially explosive atmospheres. Furthermore, spheroidal cast iron outer casings (type TUV..F) are available and meet the required material specifications

        Benefits and uses

        • Load-free motor run-up
        • Smooth startup of the driven machine
        • Drive overload protection
        • Dampens torsional vibration in the drive
        • The automatic reaction to voltage drops and motor protection
        • Protects system components, thereby increasing service life
        • Robust and unsusceptible to environmental influences
        • Wear-free power transmission; less maintenance and repair work
        • Automatic load sharing in multi-motor drives protects against motor overload
        • Sequential startup of the motors reduces the load on the supply circuit

        Typical fields of use

        • Armored-face conveyors
        • Stage loader
        • Crushers

        Performance chart

        Voith | Performance chart for the TV..F fluid coupling with centrifugal valves

        Dimensions

        The installation dimensions correspond with the couplings

        TV..Y – with dynamic re-filling

        Voith | Constant-filled type TV..Y fluid coupling with refilling holes
        The type TV..Y fluid coupling is a constant-filled coupling used in centrifugal load drives (e.g., fan and mill applications). Through dynamic re-filling, the operating fluid is guided from the working circuit into the delay chamber during startup, depending on the slippage, ensuring an almost time-independent torque limitation and is thus suitable for longer startup times. The coupling also protects the drive against overload and dampens torsional vibrations, protecting your system and increasing productivity. This fluid coupling is available with two coaxially arranged work circuits (type DTV..Y); these parallel circuits double the power transmission.



        Additionally, Voith offers fluid couplings with water as the operating medium (type TWV..Y). This is critical when operations are located in potentially explosive atmospheres. Furthermore, spheroidal cast iron outer casings (type TUV..Y) are available and meet the required material specifications.

        Benefits and uses

        • Load-free motor run-up
        • Soft startup with temporally extended torque limitation for longer startup times
        • Drive overload protection
        • Dampens torsional vibration in the drive
        • Protects system components, thereby increasing service life
        • Robust and unsusceptible to environmental influences
        • Wear-free power transmission; less maintenance and repair work
        • Automatic load sharing in multi-motor drives protects the motor against overload
        • Sequential startup of the motors reduces the load on the supply circuit

        Typical fields of use

        • Fans
        • Mills
        • Centrifuges

        Performance chart

        Voith | Performance chart for TV..Y fluid coupling with refilling holes

        Dimensions

        The installation dimensions correspond with the couplings

        Thermal monitoring and switching devices

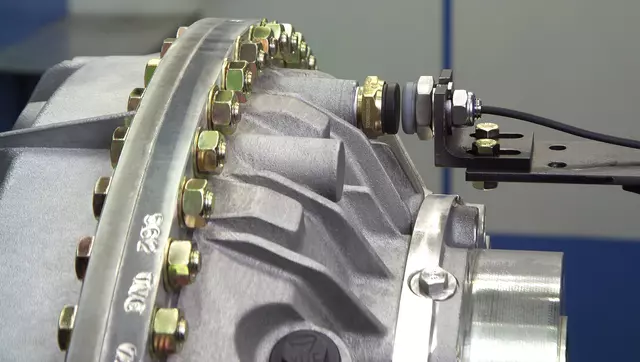

        Voith | BTM non-contact thermal monitoring device

        BTM (non-contact thermal monitoring device)


        The non-contact thermal monitoring device continuously determines the temperature of the operating medium in the fluid coupling. The device provides an active analog signal that can be constantly monitored for safety, also process control as a secondary function. The BTM is typically used on belt conveyors with long and frequent startup procedures and crusher and shredder applications.

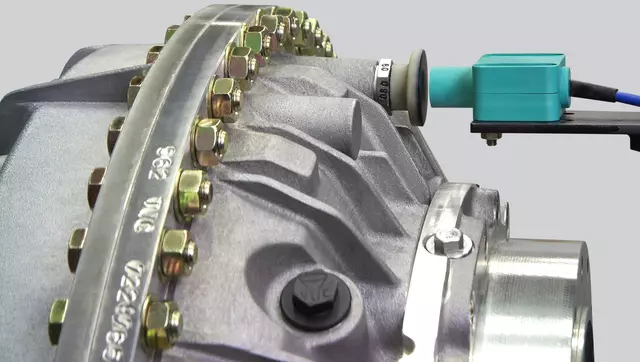

        Voith | BTS non-contact thermal switching device

        BTS (non-contact thermal switching device)


        The BTS monitors the coupling temperature contact-free. When reaching the activation temperature, the BTS switches the motor off or triggers an alarm signal. This system is particularly suitable for applications with lengthy startup procedures or frequently occurring overloads. Typical fields of application for the BTS are, for example, medium and long belt conveyors, crushers, hammer mills, and bucket wheel excavators. For use in potentially explosive atmospheres, the BTS Ex is available.
        Voith | MTS mechanical thermal switching device

        MTS (mechanical thermal switching device)


        The MTS monitors the temperature of the coupling. When reaching the activation temperature, it switches the motor off or triggers an alarm signal. The MTS is particularly suitable for applications where thermal overloading is not very common, e.g., where start-up procedures are short and occur infrequently. The MTS is predominantly used for mixers, short belt conveyors, and bucket conveyors. It is also suitable for use in potentially explosive atmospheres.
        Publications Operating manuals Certificates

        Fill-controlled fluid couplings

          Fill-controlled fluid couplings have an external fluid circuit also used for cooling. Additionally, they have a very high thermal capacity, allowing longer and more frequent high-load start-up procedures.

          TurboBelt TPXL

          Voith | TurboBelt TPXL couplings for belt conveyor drives

          TurboBelt TPXL family


          With double the power transmission capability within the same installation space, the Voith TurboBelt TPXL coupling family is specifically designed to meet the requirements of belt conveyor drives. The TurboBelt TPXL coupling provides smooth and wear-free power transmission thanks to the hydrodynamic principle. Its compact design facilitates ease of installation. Rugged, robust, and compact, the TurboBelt TPXL couplings are engineered to the highest standards for greater availability and reliable operation.
          Find out more

          TPKL

          Voith | Fill-controlled fluid coupling type TPKL
          The type TPKL fill-controlled fluid coupling is especially suitable for belt conveyors in rugged and harsh mining industry environments. Ideal for the respective load condition of the belt, the TPKL regulates acceleration exceptionally gently, which protects the belt, prevents downtime, and increases the system's service life. These fluid couplings ensure active load sharing in multi-motor drives. Even complicated start-up procedures are possible at short sequential intervals, thanks to the stand-still re-cooling.


          The type DTPKL has two axially arranged working circuits that operate in parallel, enabling twice as much power transmission at the same overall height. The variant (D)TPKL-R has a flatter, although more extended, tank for lower shaft center line heights. The most compact design is the (D)TPKL-E, which has no oil tank. The tank is situated externally or, e.g., integrated into the swing frame.



          Benefits and uses

          • Load-free motor run-up
          • Smooth startup of the driven machine – up to several minutes
          • Shorter periodic distances for subsequent starts thanks to the stand-still re-cooling
          • Drive overload protection
          • Dampens torsional vibration in the drive
          • Protects system components, thereby increasing service life
          • Robust and unsusceptible to environmental influences
          • Wear-free power transmission; less maintenance and repair work
          • Automatic load sharing in multi-motor drives protects the motor against overload
          • Sequential startup of the motors reduces the load on the supply circuit

          Typical fields of use

          • Belt conveyors

          Performance chart

          Voith | Performance chart of fill-controlled fluid couplings type TPKL

          Dimensions

          Voith | Dimensions of the type TPKL fill-controlled fluid coupling
          Type A B C D E F

          G (m6)

          		 H1 H2
          562 TPKL 1000 615 1130 849 230 310 90 135 128
          650 TPKL 1165 710 1480 1055 217 530 120 165 165
          650 DTPKL 1165 710 1480 1200 217 675 120 165 165
          866 TPKL 1530 900 2200 1575 290 883 160 240 240
          866 DTPKL 1530 900 2200 1750 290 1059 160 240 240

          Dimensions in mm

          CPC

          Voith | Fill-controlled fluid coupling type CPC for underground mining
          The type CPC fill-controlled fluid couplings are particularly suitable for heavy-duty underground mining use in armored face conveyors and have a power transmission range of up to 1,600 kW. Designed to start your armored face conveyor in a controlled manner, even under heavily loaded conditions, the coupling has a very high thermal capacity, that allows for multiple startups. The innovative XL wheel profile enables the coupling to transfer up to 60% more power in the same installation space, resulting in increased system availability with the highest system productivity.

          The hydrodynamic coupling circuit is specifically designed for your chain conveyor. The coupling limits the torque in the drive chain to a defined maximum value, which protects the chains and all components against damage. Furthermore, the availability of the armored face conveyor increases and the maintenance costs remain low.

          The coupling operates with water as a non-combustible and environmentally friendly operating medium. Moreover, water is always available underground. No additional and cost-intensive explosion protection measures are necessary when installing this coupling.

          Benefits and uses

          • Overload protection of the drive chain
          • Higher power transmission (up to 60%) compared with similar-sized couplings
          • Unlimited start-up attempts following a blocked armored face conveyor
          • Optimally set torque limit for your system
          • Wear-free power transmission resulting in reduced maintenance and repairs



          Typical fields of use

          • Armored face conveyors

          Power range

          Type Power at 1500 rpm Maximum torque
          CPC 700 700  kW 11500 Nm
          CPC 1000 1000 kW 15500 Nm
          CPC 1200 1200 kW 18000 Nm
          CPC 1600 1600 kW 23500 Nm



          Type Power at 1800 rpm Maximum torque
          CPC 1800 HP

          1300 kW

          1800 HP

          		 18000 Nm
          CPC 2350 HP

          1750 kW

          2350 HP

          		 23500 Nm



          Dimensions

          Dimensions of the type CPC 700 fill-controlled fluid coupling
          Type L H B
          CPC 700 1294 950 950



          Type L H B
          CPC 1000 1350 950 950
          CPC 1200 1350 950 950
          CPC 1600 1350 950 950
          CPC 1800 HP 1350 950 950
          CPC 2350 HP 1350 950 950

          Dimensions in mm

          DTPKWL2

          Voith | The fill-controlled fluid coupling type DTPKWL2 for armored face conveyors
          The fill-controlled fluid coupling, type DTPKWL2, is especially suited for heavy-duty usage in armored face conveyors. In underground coal mines, this coupling provides optimal startup and operational control of the armored face conveyor. Additionally, the high thermal capacity allows for multiple startups even when heavily laden.

          The coupling's hydrodynamic circuit is specially designed for chain conveyors, as it limits the torque in the drivetrain to a fixed value. This torque limitation protects the chain and all the drive components from damage, thereby increasing the availability and productivity of the armored face conveyor while keeping maintenance costs low.

          Water is a non-combustible and environmentally-friendly operating medium, so the coupling requires no additional costly explosion protection measures. Moreover, water is also readily available underground.

          Benefits and uses

          • Unloaded motor run-up
          • Smooth startup of the driven machine
          • Protection of the drive chain in the event of an overload
          • Torsional vibration dampening of the drive chain
          • Unlimited startup attempts following a blocked armored face conveyor
          • Optimally set the torque limit for your system
          • Protects system components, thereby increasing service life
          • Robust and unsusceptible to environmental influences
          • Wear-free power transmission; less maintenance and repair work
          • Automatic load sharing in multi-motor drives protects against motor overload
          • Timely, stepped run-up of the motors reduces the load on the supply circuit

          Typical fields of use

          • Armored face conveyors

          Specifications

          Voith | Specifications of the fill-controlled fluid coupling type DTPKWL2
          Type Power at 1500 rpm Maximum torque
          487 DTPKWL2 400 kW 7000 Nm
          562 DTPKWL2 630 kW 9000 Nm



          Type

          		 L H B
          487 DTPKWL2 1100 860 860

          562 DTPKWL2

          		 1100 860 860

          Dimensions in mm

          TP...

          Turbokupplungen Typ (D)TPK und (D)TP
          The type TP fill-controlled fluid coupling is predominantly used in shredding machine drives. The filling level of the coupling can be controlled, allowing load-free motor run-up and controlling of the torque. Thanks to the hydrodynamic principle, the fluid coupling dampens torsional vibration and torque shocks, thus protecting the drive and increasing the productivity of your system. Due to the active cooling circuit, the TP fluid coupling has a high thermal capacity. This facilitates a smoother startup and acceleration of the driven machine over a longer period of time. Additionally, this fluid coupling is available with two axially arranged working circuits (type DTP); these parallel acting circuits double the power transmission.


          For type TPW, the operating medium is water, which makes this coupling especially suitable for use in potentially explosive atmospheres.

          Benefits and uses

          • Load-free motor run-up
          • Smooth startup of driven machine
          • Protects the drive in case of an overload
          • Dampens torsional vibration in the drive
          • Accelerates heavy masses
          • Protects system components, thereby increasing service life
          • Robust and unsusceptible to environmental influences
          • Wear-free power transmission; less maintenance and repair work
          • Automatic load sharing in multi-motor drives protects against motor overload
          • Sequential startup of the motors reduces the load on the supply circuit

          Typical fields of use

          • Shredders
          • Mills
          • Crushers
          • Fans

          Performance chart

          Performance chart of the type TP fill-controlled fluid coupling

          Dimensions

          DTP

          Dimensions of the DTP fill-controlled fluid coupling
          Dimensions of the type DTP fill-controlled fluid coupling
          Type A B F L K H h1
          1150 DTP 1188 1492 139 910 1240 1644,5 600

          Dimensions in mm

          DTPK

          Dimensions of the DTPK fill-controlled fluid coupling
          Dimensions of the DTPK ​fill-controlled fluid coupling
          Type A B F L K H h1
          487 DTPK 670 816 204 280 766 923 485
          562 DTPK 713 860 190,5 340 806 1000 525
          650 DTPK 800 996 233,5 360 980 1106 605
          750 DTPK 970 1140 252,5 508 1020 1255 650
          866 DTPK 1125 1300 371,25 450 1220 1465 765
          1000 DTPK 1250 1580 354,5 500 1500 1695 920
          1150 DTPK 1420 1700 425 570 1700 1900 1055

          Dimensions in mm

          Publications Certificates

          Fluid couplings for diesel engines

            Fluid couplings for diesel engines provide torsional vibration dampening and protect the diesel engine from overload. The fill-controlled type also offers a clutching function.

            TD

            Voith | TD constant-fill fluid coupling
            The TD constant-fill fluid coupling is used in tractors to dampen drive chain torsional vibration and torque shocks, which increases the service life of all drive components. In the event of overload, the torque limiting properties of the coupling prevent the engine from stalling.

            Benefits and uses

            • Load-free engine run-up
            • Smooth startup of the driven machine
            • Drive component overload protection
            • Damps torsional vibration in the drive
            • Protects system components, thereby increasing service life
            • Robust and unsusceptible to environmental influences
            • Wear-free power transmission; less maintenance and repair work

            Typical fields of use

            • Tractors

            Performance chart

            Voith | Performance chart of the TD constant-fill fluid coupling

            Dimensions

            Voith | Dimensions of the TD constant-fill fluid coupling
            Type D B
            390 TD-vario 438 145
            460 TD-vario 512 205

            Dimensions in mm

            TDM-SAE

            The type TDM-SAE constant-fill fluid coupling is used in diesel engine drives for mobile shredding machines. The coupling is suitable for accelerating moderate masses. Thanks to the hydrodynamic principle, the fluid coupling dampens torsional vibration and protects the drive components against overload, which increases the productivity of your system.

            Benefits and uses

            • Reduced load engine run-up
            • Smooth startup of the driven machine
            • Drive component overload protection
            • Dampens torsional vibration in the drive
            • Protects system components, thereby increasing service life
            • Robust and unsusceptible to environmental influences
            • Wear-free power transmission; less maintenance and repair work

            Typical fields of use

            • Crushers
            • Chippers
            • Shredders

            Performance chart

            Voith | Performance chart of the type TDM-SAE constant-fill fluid coupling

            Dimensions

            Voith | Dimensions of the type TDM-SAE constant-fill fluid coupling
            The fluid coupling TDM-SAE is flanged directly to the motor.
            Type SAE A B D1 L D2
            422 TDM-SAE 11,5/2 367 240 539 110 70
            422 TDM-SAE 11,5/3 367 240 539 110 70
            487 TDM-SAE 14/1 397 282 618 120 80
            562 TDM-SAE 14/1 452 314 706 150 95
            650 TDM-SAE 14/0 570 430 830 160 110
            650 TDM-SAE 18/0 570 430 830 160 110

            Dimensions in mm

            TPKD-SAE/TPD-SAE

            Voith | Types TPD-SAE/TPKD-SAE fill-controlled fluid coupling
            The types TPD-SAE and TPKD-SAE fill-controlled fluid couplings are suitable for accelerating hefty masses with high break-away torques, usually mobile shredding and crushing machines with integrated diesel engines. The filling level for these couplings is controllable, allowing load-free engine run-up and control of the torque.


            Once emptied, the torque transmission of the fluid coupling from the engine to the driven machine is de-coupled (hydrodynamic clutching function). Furthermore, the hydrodynamic principle facilitates torsional vibration dampening that protects the drive chain against overload, increasing your equipment's productivity.

            Benefits and uses

            • Load-free start and idle speed operation
            • Smooth startup of the driven machine
            • Drive overload protection
            • Dampens torsional vibration in the drive chain
            • Protects system components, thereby increasing service life
            • Accelerates heavy masses with high break-away torque
            • Hydrodynamic switching function
            • Allows stored energy in the rotors to be released during surge loads
            • Robust and unsusceptible to environmental influences
            • Wear-free power transmission; less maintenance and repair work

            Typical fields of use

            • Crushers
            • Chippers
            • Shredders
            • Pump drives

            Performance chart

            Performance chart for type TPD-SAE and TPKD-SAE fill-controlled fluid couplings

            Dimensions

            Voith | Dimensions of the type TPD-SAE and TPKD-SAE fill-controlled fluid couplings
            Type SAE A E F G H J D1
            487 TPD-SAE 14/1 739 692 600 917 692 170 90
            562 TPKD-SAE 18/0 925 1130 611 1004 800 254 110
            650 TPKD-SAE 18/0 1009 1330 705 1150 880 254 120

            Dimensions in mm
            Type 750, 866, 1000 and 1150 TP(K)D-SAE on request

            Publications

            TurboGuide Mobile

              Imagine having all your coupling information readily available on your smartphone ... Now, it is simply 1 click away.

              Quick overview
               Learn more

              Download from the app store today

              Apple App Store
              Apple App Store
              Download now
              Google Play Store
              Google Play Store
              Download now

              Operating principle

                The hydrodynamic principle


                Hydrodynamic couplings transmit mechanical power from the motor to the driven machine via fluid flow via two bladed wheels positioned face to face. The primary wheel (red) is connected to the motor and acts like a rotary pump, while the secondary wheel (blue) is connected to the driven machine and acts like a turbine. Power transmission is proportional to the fill level in the working circuit. As a result of the mechanical separation of the drive and driven sides, the hydrodynamic coupling transfers the power wear-free, simultaneously dampening torsional vibration and torque shocks in the drive chain.

                Build to perform! Voith coupling run for decades.

                  Who runs oldest Voith coupling on the market?
                  Take part in the competition ‘Who runs oldest Voith coupling on the market?’

                  Register your old, but still running Voith hydrodynamic coupling between Oct 1 and Dec 31, 2024. Each participant will receive a small gift and the operators of the oldest three couplings will win a free health check and this year's Oktoberfest beer mug!*
                  *Alternatively, choose a stylish thermo mug for cold drinks

                  Participate now

                  Voith Service – how can we help you?

                    Why use Voith Service?
                    Why use Voith Service?

                    • Everything from a single source: development, design, production – and service!
                    • Decades of product experience as an original equipment manufacturer and service provider
                    • Fast and smooth cooperation and best service thanks to a worldwide network of service locations
                    • Long-term partnership and planning security are guaranteed due to longstanding corporate stability

                    To our entire service portfolio Voith Turbo Webshop

                    Explore other products of interest

                      RIGHT OFFCANVAS AREA
